Product description

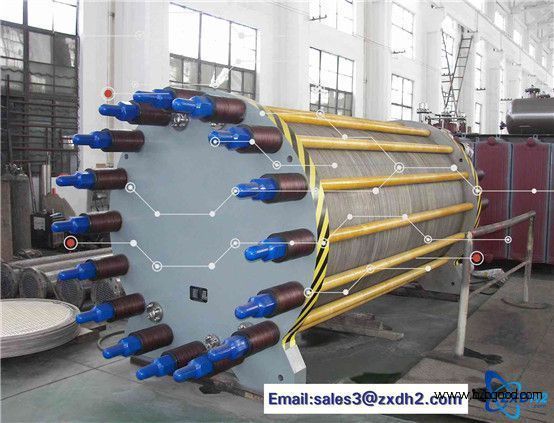

The modular electrolyzer with bipolar pressurization technology adopts special

design and patented materials, so the electrolyzer will not leak during operation,

has long service life and no need any maintenance;

In the compact electrolyzer, non asbestos patented material is used as diaphragm,

pure nickel mesh is used as cathode and anode, patented material is used as sealing

gasket, carbon steel and pure nickel coating are used as bipolar plate, the precise

design of sealing structure, the electrolyzer can enjoy at least five years of free

maintenance, and it's good for the environment..

Special activation treatment is carried out on the cathode of the electrolyzer to ensure

the high water electrolysis efficiency with low power consumption ，and save electric

energy for customers;An electrolytic cell consists of 68 cells with maximum DC

voltage. 136v, rated DC current 740A, ensure the H2 gas flow of 20ncmh and O2 gas

flow of 10ncmh; (detailed parameters should be confirmed in the process of detailed

engineering design.)

Tech Specification

P/N	ZXD-5
Hydrogen Production（m3/h）	5
Oxygen Production（m3/h）	2.5
Hydrogen Purity（V/V）	≥99.99%
Oxygen Purity（V/V）	≥92.5%
Operating load	50%-100%
Working Pressure（MPa）	1.5~3.0
Hydrogen Moisture Content（g/m3）	≤4
Hydrogen Alkalinity（mg/m3）	≤1
Working Temperature（℃）	85±5
Cooling water flow（m3/h）	1.3
DC power consumption(kW·h/m3H2)	≤4.3
External dimension of electrolyzer L×W×H （mm）	940×850×780
Electrolyzer Weight（kg）	1300
Alkali concentration	30% KOH
Circulation quantity of alkali liquor（m3/h）	0.3~0.35
Koh consumption (normal operation)（kg/unit）	45
