Large size alkaline electrolyzer
$774.90
Technical features
Email:sales2@zxdh2.com Skype: dddemi33 Whatsapp:+8618030235313 Manager: Tiffany
Using PD Pt bimetallic deoxidation catalyst, the deoxidation effect can reach oxygen content ≤ 1ppm,
and the atmospheric deoxidation effect can reach oxygen content ≤ 5ppm.
High quality molecular sieve is adopted, with high loading coefficient,
high adsorption capacity and high adsorption rate. moisture content of hydrogen in the product is less than - 75 ℃ dew point.
Using high efficiency sintered nickel tube filter, the filtration efficiency can reach 99.9999%, and the molecular size after dust removal is less than 0.3 μ M.
TechSpecification

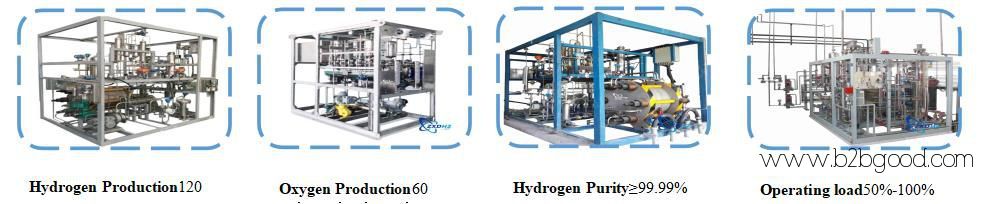

| P/N | ZXD-120 |
|---|---|
| Hydrogen Production（m3/h） | 120 |
| Oxygen Production（m3/h） | 60 |
| Hydrogen Purity（V/V） | ≥99.99% |
| Oxygen Purity（V/V） | ≥92.5% |
| Operating load | 50%-100% |
| Working Pressure（MPa） | 1.5~2.0 |
| Hydrogen Moisture Content（g/m3） | ≤4 |
| Hydrogen Alkalinity（mg/m3） | ≤1 |
| Working Temperature（℃） | 85±5 |
| Cooling water flow（m3/h） | 20 |
| DC power consumption(kW·h/m3H2) | ≤4.3 |
| External dimension of electrolyzer L×W×H （mm） | 2850x1650x1860 |
| Electrolyzer Weight（kg） | 15700 |
| Alkali concentration | 30% KOH |
| Circulation quantity of alkali liquor（m3/h） | 7.5~10 |
| Koh consumption (normal operation)（kg/unit） | 1010 |
about us
He whole system adopts PLC automatic control, and nitrogen oxygen content and dew point are monitored online.
The ZXD nitrogen production device produced by our company has advanced technology, reliable operation and high nitrogen purity.
The nitrogen yield can reach to 2000Nm3/h according to the user's requirements.
Zhongxinda Electrolyzer Series Can Meet All Your Needs
As a manufacturer of high pressure alkaline electrolysis equipment, Zhongxinda offers the widest range of electrolytic cells on the market.
In the pressure range of 1 to 30 bar, standard values being from 0.4 to 800 Nm3/h as,
coupled with multi-megawatt solutions,our electrolyzer will meet all of your output pressure and purity needs.
