Specialized in the production of hydrogen, oxygen generation device

Please freely talk us if you ask further info:

Email: sales1@zxdh2.com | Skype: jessica01235483

WhatsApp: +86-18030235311 | Wechat: hu18030235311

Product Description

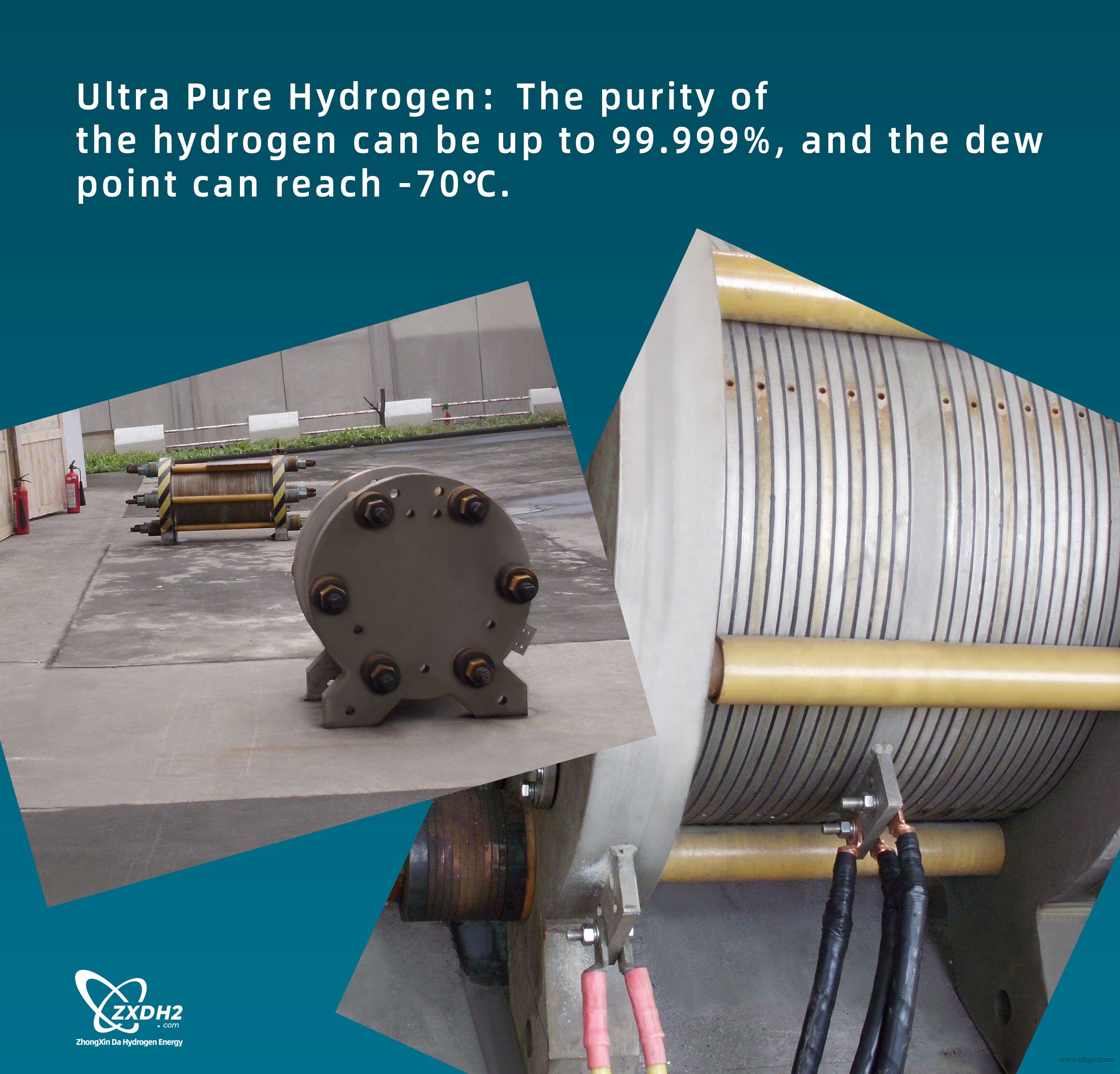

Ultra-pure gas:
-Ultra-pure (99.999%) gas generation with continuous purity monitoring function can extend the life of the equipment and save a lot of maintenance and replacement costs.

Reliable reliability:
-The system is equipped with an overvoltage protection device. If the hydrogen output flow exceeds the maximum pressure, the generator will automatically shut down. It can be restarted after turning off the power manually.

Stable gas flow:
-Continuous and stable gas output: The generator can be used continuously or intermittently, and the gas produced is stable and high in purity.

Exhaustive test
-Each unit has passed a comprehensive factory test, in line with national standards and beyond the industry standards.

Xiamen Zhongxinda Hydrogen Energy Technology Co., Ltd
www.zxdh2.com

Technical Specifications

The modular electrolyzer with bipolar pressurization technology adopts special design and patented materials, so the electrolyzer will not leak during operation, has long service life and no need any maintenance;

P/N	ZXD-300
Hydrogen Production（m3/h）	300
Oxygen Production（m3/h）	150
Hydrogen Purity（V/V）	≥99.99%
Oxygen Purity（V/V）	≥92.5%
Operating load	50%-100%
Working Pressure（MPa）	1.5~2.0
Hydrogen Moisture Content（g/m3）	≤4
Hydrogen Alkalinity（mg/m3）	≤1
Working Temperature（℃）	85±5
Cooling water flow（m3/h）	48
DC power consumption(kW·h/m3H2)	≤4.3
External dimension of electrolyzer L×W×H （mm）	4570x1885x2200
Electrolyzer Weight（kg）	27600
Alkali concentration	30% KOH
Circulation quantity of alkali liquor（m3/h）	17~20
Koh consumption (normal operation)（kg/unit）	2530

Company Information

The ZXDH series hydrogen generator produced by Zhongxinda has a capacity from 2 to 250m3/h, and uses a new programmable logic controller (PLC) to achieve control.
Provide users with an efficient, reliable and safe hydrogen production system. The hydrogen generator launched by the company also has a variety of control methods and auxiliary equipment options.
It is available for users to configure according to the best working conditions.

The electrolytic cell body is a bipolar filter press type plate and frame structure, adopts a special sealing structure and materials, and has no leakage in long-term operation.
The high operating pressure of the device saves the investment in compressors and large-capacity wet storage tanks.
The load adaptability is strong, and the operating pressure and output are continuously adjustable below the rated value.
The current efficiency is high, and the energy consumption is much lower than that of the atmospheric tank.
Microprocessor control, automatic operation, complete fault alarm protection function.
